Acer launched the Chromebox CXI6 on Dec 1, 2025. Powered by Intel Core 7 150U, it supports up to 4 displays in a compact chassis, ideal for business and education.
On December 1, 2025, Acer rolled out the Acer Chromebox CXI6. Powered by the Intel Core 7 150U processor, this unit supports up to 4 display outputs despite its compact size, making it an optimal choice for business and educational environments.
Table of Contents
Specs
| ■ Acer Chromebox CXI6 | |
|---|---|
| Processor / Main Chip | Intel Core 7 150U (Raptor Lake-R) |
| Graphics / Accelerator | Intel Graphics |
| Memory | 16GB (DDR4-3200 config) |
| Storage | 256GB M.2 PCIe NVMe SSD |
| Interfaces | Front: USB-A 3.2 Gen 2 x2, USB-C 3.2 Gen 2 x1, Audio, microSD Rear: HDMI 2.1 x2, DP 1.4 x1, USB-A 3.2 Gen 2 x2, 2.5GbE, DC-IN |
| Power / Consumption | 90W Adapter, TDP 15W |
| OS / Software | Chrome OS |
| Size / Weight | 166.5 x 165.8 x 43.8 mm |
Features
Major Components
The heart of the system is the Intel Core 7 150U. Based on the Raptor Lake architecture (Series 1), this processor features up to 10 cores (2P+8E) and a max frequency of 5.4GHz. The integrated Intel Graphics delivers sufficient performance for daily tasks and light editing. Power consumption is designed for efficiency with a base TDP of 15W (max boost around 55W). The fan noise is barely noticeable, making it quiet and perfect for home offices.
Memory and Storage
It comes with 16GB (DDR4-3200) memory, and 2 slots allow for user replacement and expansion. Storage is a 256GB M.2 PCIe NVMe SSD. A microSD card slot is also present, convenient for data transfer or temporary storage.
Note: Since there is no 2.5-inch bay, storage expansion relies on swapping the M.2 SSD, using external drives, or leveraging cloud storage.
GenAI Performance
The Core 7 150U does not have a dedicated NPU. While Chrome OS ensures snappy operation, dedicated AI tasks rely on the CPU/GPU. Rather than heavy processes like image generation, using cloud-based AI services is the more "Chromebox-like" approach.
Others (Network / Ports / Power / Cooling, etc.)
- Network: Features Wi-Fi 6E (6GHz support) + Bluetooth 5.3, and wired 2.5G Ethernet. Large file transfers are smooth.
- I/O & Video: With HDMI 2.1 x2 and DisplayPort 1.4, it supports simultaneous output to up to 4 displays (including USB-C). You can easily build a 4K@60Hz multi-monitor environment.
- Installation: VESA mount supported. You can fix it to the back of a monitor to use it like an All-in-One PC.
Competitor Note: The ASUS Chromebox 5 is a competitor, but the CXI6 excels in expandability with its abundant port count and latest connectivity standards (2.5GbE, Wi-Fi 6E).
Exterior (I/O Layout, Size, Installation)
The chassis creates a simple look with a matte black finish. Its size is approx. 166.5 x 165.8 x 43.8 mm, compact enough to stack a few CD cases, taking up minimal desk space. The front houses frequently used USB-A x2, USB-C, microSD slot, and audio jack. The rear aggregates HDMI x2, DP, 2.5GbE, and the remaining USB ports, allowing for tidy cable management.
Images (Official) and Comments

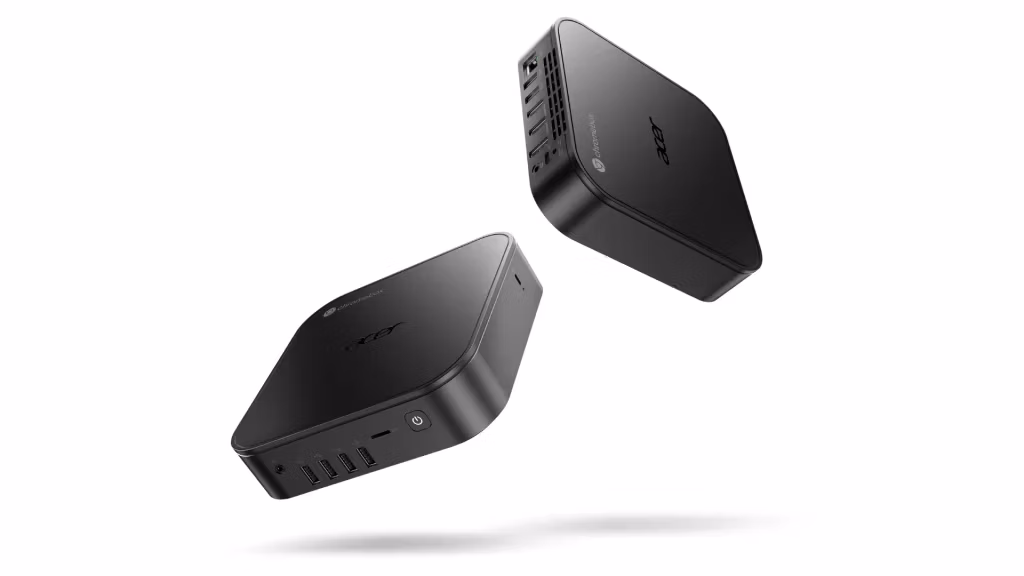

Equipped with front USB-A 3.2 Gen 2 x2, USB-C 3.2 Gen 2, and microSD slot. The power button and access lamp are placed for easy visibility.
Features two HDMI 2.1 ports and DisplayPort 1.4, a powerful spec for multi-display setups. 2.5G LAN and a lock port are also firmly included.
Summary
The Acer Chromebox CXI6 is a highly practical mini PC that achieves space-saving x multi-screen output x high-speed networking. Combined with the manageability of Chrome OS, it is excellent for educational institutions, corporate thin clients, and signage use, as well as for home office work. While not suited for heavy 3D games or massive local AI processing, its rich ports and 4-screen output expandability will be a major attraction for users who prioritize work efficiency.
